CNC Lathe | 5 STAR evo 50→90L

50 - 60 - 80 - 90L

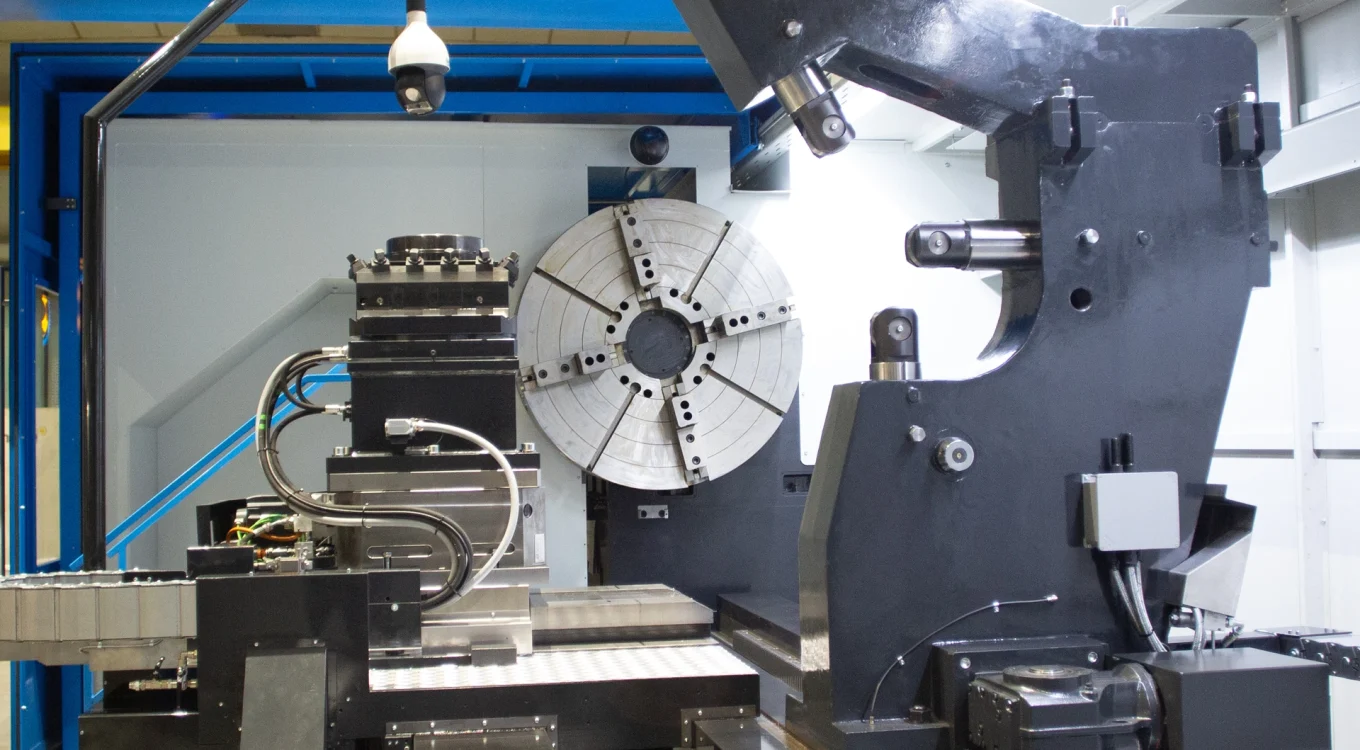

The 5-STAR EVO 50…90L is designed for handling long parts or parts with complex geometries, thanks to a double central guide that reduces interference between the carriage, tailstock, and steady rests. This architecture offers greater freedom in the choice of support points and the arrangement of equipment along the machine.
Here, the working range reaches 20 meters between centers, with diameters up to 2,500 mm. The platform is designed to support loads up to 40,000 kg, resting on a monolithic bench 1,600 mm wide; the spindle can develop up to 178 kW of power.
The possibility of configuring the machine with two independent carriages allows for parallel machining and reduces overall cycle times. The 50…90L series is particularly suitable for long components that require multiple turning and finishing operations on the same installation.

Monolithic structure
4-guide CNC lathes

Request information

Technical Specifications		50	60	80	90L
SWING OVER CROSS SLIDE	mm	500	600	800	900
DISTANCE BETWEEN CENTERS	mm	2000 ... 16000
WIDTH OF BED	mm	670		1100
NUMBER OF GUIDEWAYS	N.	4
BED STRUCTURE		Monolithic
SPINDLE BORE	130
SPINDLE NOSE	ISO	A2-11		A2-15
SPEED RANGES (Automatic)	N.	2
SPINDLE SPEED RANGE	rpm	0:1200		0:800
SPINDLE MOTOR POWER (S6/S1)	Kw	45/30 [ 56/37 ]		56/37 [ 71/51 ]
TAILSTOCK QUILL DIAMETER	mm	120		200
TAILSTOCK QUILL STROKE	mm	250		300
TAILSTOCK QUILL INSIDE TAPER	Metric	6
CNC SYSTEM	Mod.	Fagor (Opt. Fanuc / Siemens / Heidenhain)

Standard equipment

CNC FAGOR or SIEMENS or FANUC or HEIDENHAIN
Bed – Legs – Headstock – Tailstock – Carriages made of cast iron
Bed guideways are induction hardened (hardness 50/55
HRC) and ground
Spindle line supported by high accuracy bearings
Carriages are sliding on antifriction material
High accuracy and ground ballscrews on x and z axis Lathes with DBC >> 5000 mm: Z axis displacement through a rack system
(hardened and ground rack)
Electric plant with low voltage control panel; it is placed in a suitable airtight cabinet. Make of components is Siemens and/or Schneider
Automatic lubrication controlled by CNC
Enclosure with front sliding doors and work area lighting with led lamps
Control programming panel, screen and handwheel mounted on a moving orientable arm
(to place it on the best position for operator)
Telescopic protections of cross slides
Safety protections according EC standards
Chip tanks on wheels
Cooling system with electro-pump
Safety microswitch (to prevent collision) for X axis, Z axis and tailstock
End of travel stops for X axis, Z axis, and tailstock
3 Colours lighting
Heat exchanger
(for oil cooling in the headstock)
Service tools and wrenches
Manuals
Machine built according EC standards
4-guide CNC lathes
Monolithic structure
Headstock with n. 2 automatic speed ranges
Tailstock displacement along bed by handwheel and rack system
Portable electronic handwheel
Hydraulically operated tailstock quill movement
Tailstock with hydraulically operated locking/unlocking of tailstock base long bed
N. 2 Chip conveyors
(anterior + posterior)

Optional equipment

Hydraulically or pneumatic operated chucks
Manual self-centering chucks
4-independant jaw chuck
Manual turret
Automatic 4 position turret
Automatic 8/12 position disc turret
Automatic powered disc turret with 8/12 positions
“C” with continuous movement by using the main motor or an independant motor.
“Y” Axis
Tailstock with hydraulically operated locking/unlocking of tailstock base long bed
Tailstock with rotating quill
Hydraulically operated steady rest
Steady rest with larger Ø than standard
Roller support steady for heavy loads
Follow rest
Automatic speed change gear box Baruffaldi with mechanic ratio 1:4
Boring bar support
Grinding unit
Milling unit
Portable electronic handwheel
Air conditioner on electric cabinet
Mist suction system
Tool control probe
Workpiece control probe
3° bottom guideway
