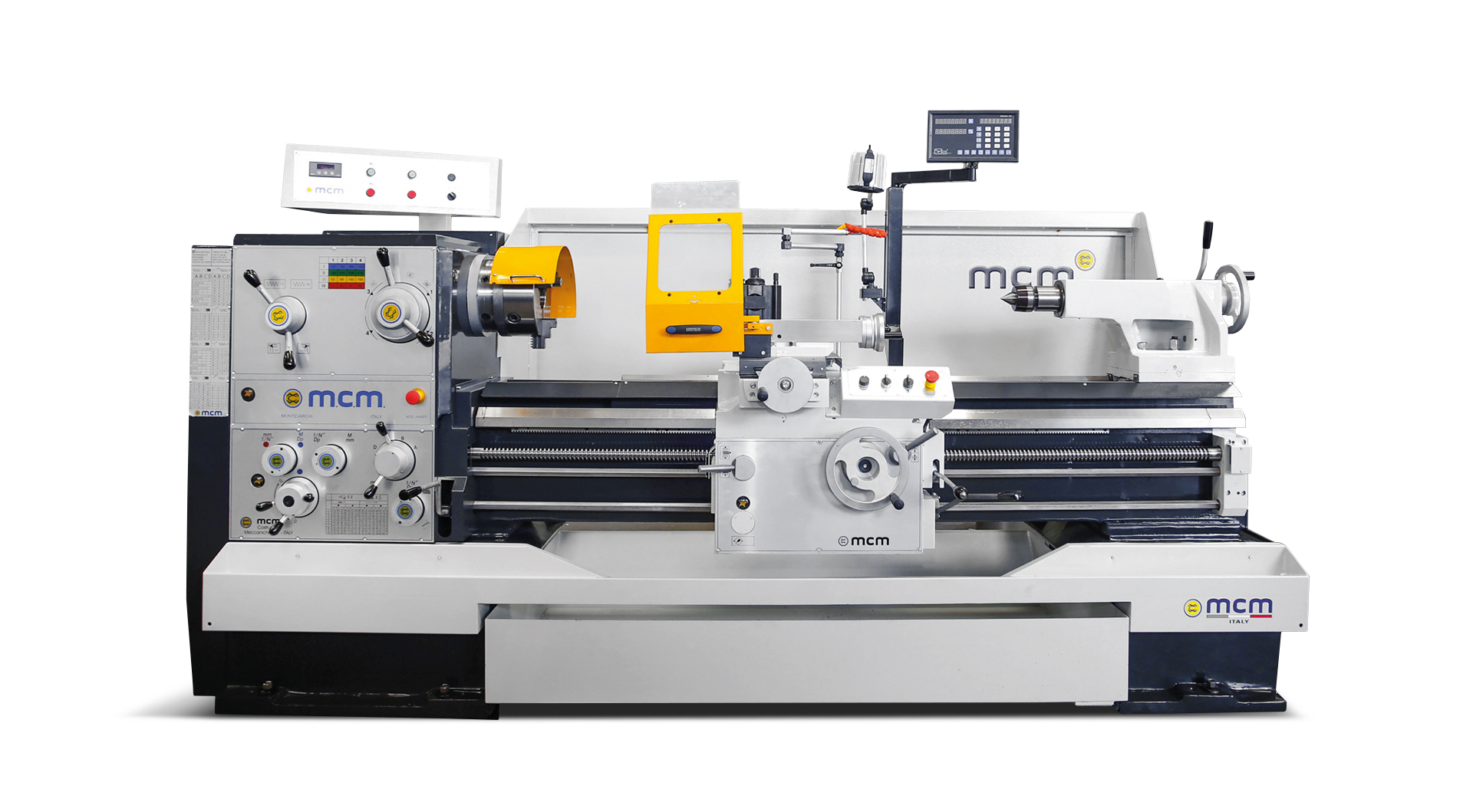

HANDY
250 - 280 - 330 - 360
- Protected Longitudinal Guideways
- Natural Gap
| Technical Specifications | 250 | 280 | 330 | 360 | |
|---|---|---|---|---|---|
| Height of centres | mm | 250 | 280 | 330 | 360 |
| Swing over bed | mm | 500 | 560 | 660 | 720 |
| Swing over cross slide | mm | 310 | 370 | 470 | 530 |
| Swing in gap | mm | 680 | 740 | 840 | 900 |
| Distance between centers | mm | 1500 - 2200 - 3000 | |||
| Bed width | mm | 400 | |||
| Spindle bore | mm | 80 | 102 | ||
| Spindle nose | Camlock | 8" | |||
| Number of spindle speeds | N. | 16 | |||
| Spindle speed range | rpm | 18:1500 | 15:1260 | ||
| Main motor power | Kw | 7.5 (9.2) | 9.2 (11) | ||
| Range of longitudinal feeds | mm/rev | (160) 0.05 - 11.52 | |||
| Range of transversal feeds | mm/rev | (160) 0.025 - 5.76 | |||
| Range of threads Metric | mm | (62) 0.05 - 112 | |||
| Range of threads Whitworth | T.P.I. | (80) 1/4 - 56 | |||
| Range of threads Module | mm | (54) 0.25 - 56 | |||
| Range of threads Diametral Pitch | DP | (80) 1/2 - 112 | |||
| Cross slide travel | mm | 360 | |||
| Top slide travel | mm | 150 | |||
| Tailstock quill diameter | mm | 80 | |||
| Tailstock quill travel | mm | 230 | |||
| Tailstock quill taper | Morse | 5 | |||
| Weigth | 250 | 280 | 330 | 360 | |
|---|---|---|---|---|---|
| HANDY x 1500 | Kg | 3400 | 3500 | 3700 | 3900 |
| HANDY x 2200 | Kg | 3800 | 3900 | 4100 | 4300 |
| HANDY x 3000 | Kg | 4600 | 4700 | 4900 | 5100 |
| Optional | ||
|---|---|---|
| Lathe with height of centres | mm | 400 |
Standard equipment
- Protected longitudinal guideways
- Natural gap
- Double mechanical clutch
- Electromagnetic brake
- Rapid feeds
- Bed – Legs – Headstock – Tailstock – Carriages made of cast iron
- Bed guideways are induction hardened and ground
- Headstock with induction hardened and ground gears; spindle is assembled on high accuracy bearings
- Carriages are sliding on antifriction material
- Air device on the tailstock to ease the displacement along bed
- Electric plant with low voltage control panel; it is placed in a suitable airtight cabinet.Make of components is Siemens and/or Schneider
- Spindle reduction sleeve
- 2 Dead centres
- Safety protections according to EC standards: plexiglas safety chuck guard with microswitch – turret plexiglas safety guard – rear protection along full length of the machine – protection of leadscrew and feed bars – emergency mushroom button
- Chip tank on wheels
- Cooling system with electro-pump
- Central lubrication of guideways with automatic pump
- Steady rest and follow rest
- Service tools and wrenches – Test certificate – Full electric diagram – Operation and maintenance book – Machine built according EC standards
Optional equipment
- Manual tool holder turret: Squared (4-way tool post) – Quick change turret – Indexing turret – Multifix turret
- 3 or 4 jaw self centering chuck
- 4-jaw independent chuck
- Live centre
- 2 or 3 axis digital readout
- Steady rest with larger Ø than standard one
- 6 position longitudinal stop
- Thread chasing dial
- Work area lighting
- Variable spindle speeds (Inverter)
- Cutting Surface Speed
- Powered small tool post
- Powered displacement of tailstock along bed
- Taper turning attachment
- Grinding equipment
- Levelling and anchoring pads
