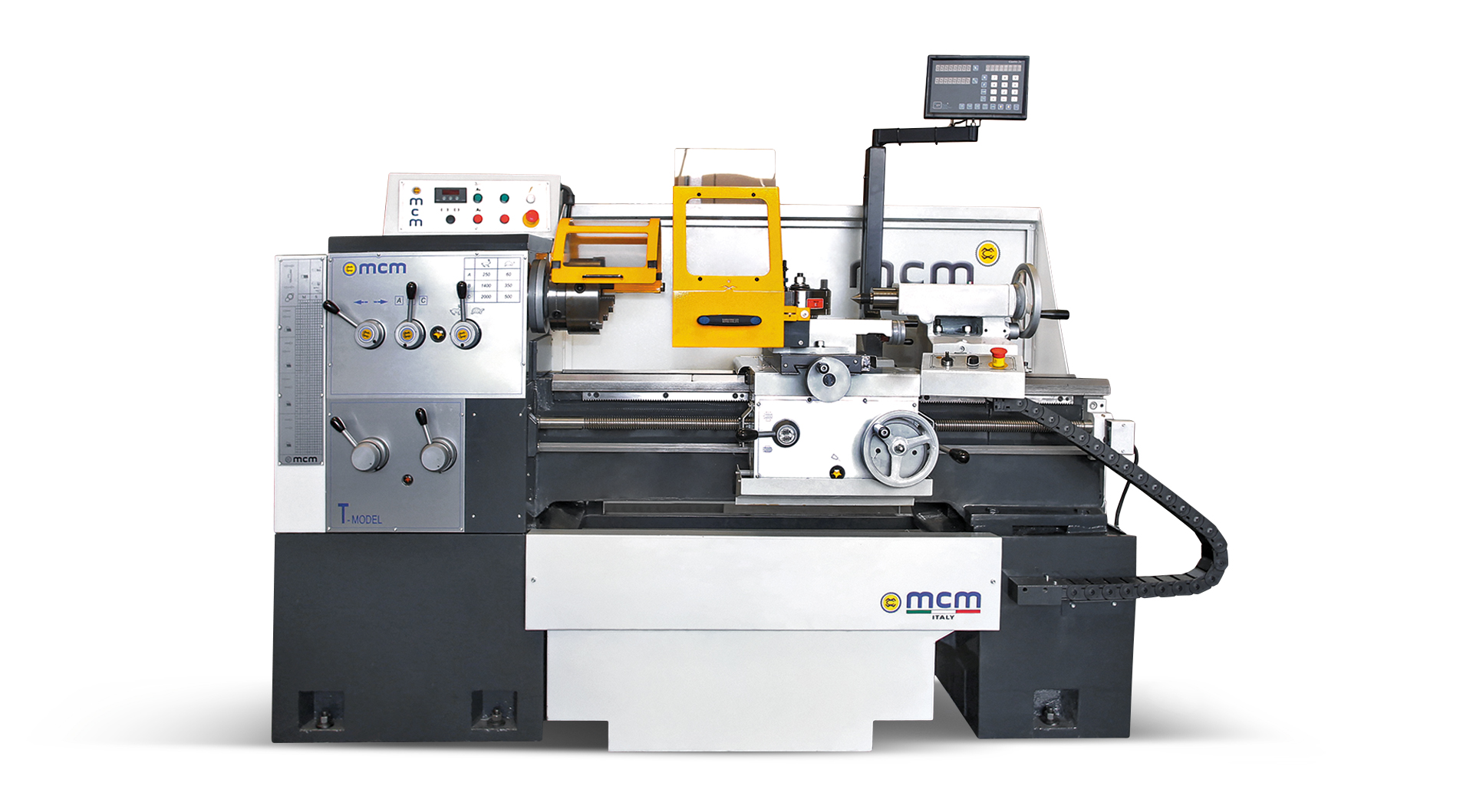

T

180 - 200 - 215 - 205 - 230

Request information

Technical Specifications		180	200	215	205	250
Height of centres	mm	180	200	215	205	250
Swing over bed	mm	360	400	430	410	500
Swing over cross slide	mm	190	250	240	245	295
Distance between centres	mm	0.8-1-1.5		1-1.5	1-1.5-2
Bed width	mm	260		290	305
Spindle bore	mm	52			65
Spindle nose	Camlock	6"
Infinitely variable speed (INVERTER) with brake resistor	rpm	N. 6 ranges from 60 up to 2000 rpm
Main motor power	Kw	4 (5.5)		5.5 (7.5)
Range of longitudinal feeds	mm/rev	(38) 0.05 - 1.50
Range of transversal feeds	mm/rev	(38) 0.025 - 0.75
Range of threads Metric	mm	(30) 0.45 - 20
Range of threads Whitworth	T.P.I.	(35) 80 - 1^3/4
Range of threads Module	mm	(25) 0.25 - 10
Range of threads Diametral Pitch	DP	(30) 160 - 3^1/2
Cross slide travel	mm	240
Top slide travel	mm	130
Tailstock quill diameter	mm	52		60
Tailstock quill travel	mm	130
Tailstock quill taper	Morse	4

Weigth		180	215	250
T x 1000	Kg	2000	2100	2300
T x 1500	Kg	2300	2400	2600

Infinitively variable spindle speeds (inverter + potentiometre to increase/decrease spindle speed + rpm-counter display)
Air device on the tailstock to ease the displacement along bed
Bed – Legs – Headstock – Tailstock – Carriages made of cast iron
Bed guideways are induction hardened and ground
Headstock with induction hardened and ground gears; spindle is assembled on high accuracy bearings
Electric plant with low voltage control panel; it is placed in a suitable airtight cabinet. Make of components is Siemens and/or Schneider
Spindle reduction sleeve
2 Dead centres
Safety protections according to EC standards: plexiglas safety chuck guard with microswitch – turret plexiglas safety guard – rear protection along full length of the machine – protection of leadscrew and feed bars – emergency mushroom button
Chip tank on wheels
Cooling system with electro-pump
Central lubrication of guideways with automatic pump
Steady rest and follow rest
Service tools and wrenches – Test certificate – Full electric diagram – Operation and maintenance book – Machine built according EC standards

Manual tool holder turret: Squared (4-way tool post) – Quick change turret – Indexing turret – Multifix turret
3 or 4 jaw self centering chuck
4-jaw independent chuck
Live centre
2 or 3 axis digital readout
6 position longitudinal stop
Thread chasing dial
Work area lighting
Cutting Surface Speed
Taper turning attachment
Grinding equipment
Levelling and anchoring pads
