TC HEAVY BIG BORE

380 - 430 - 500 - 625

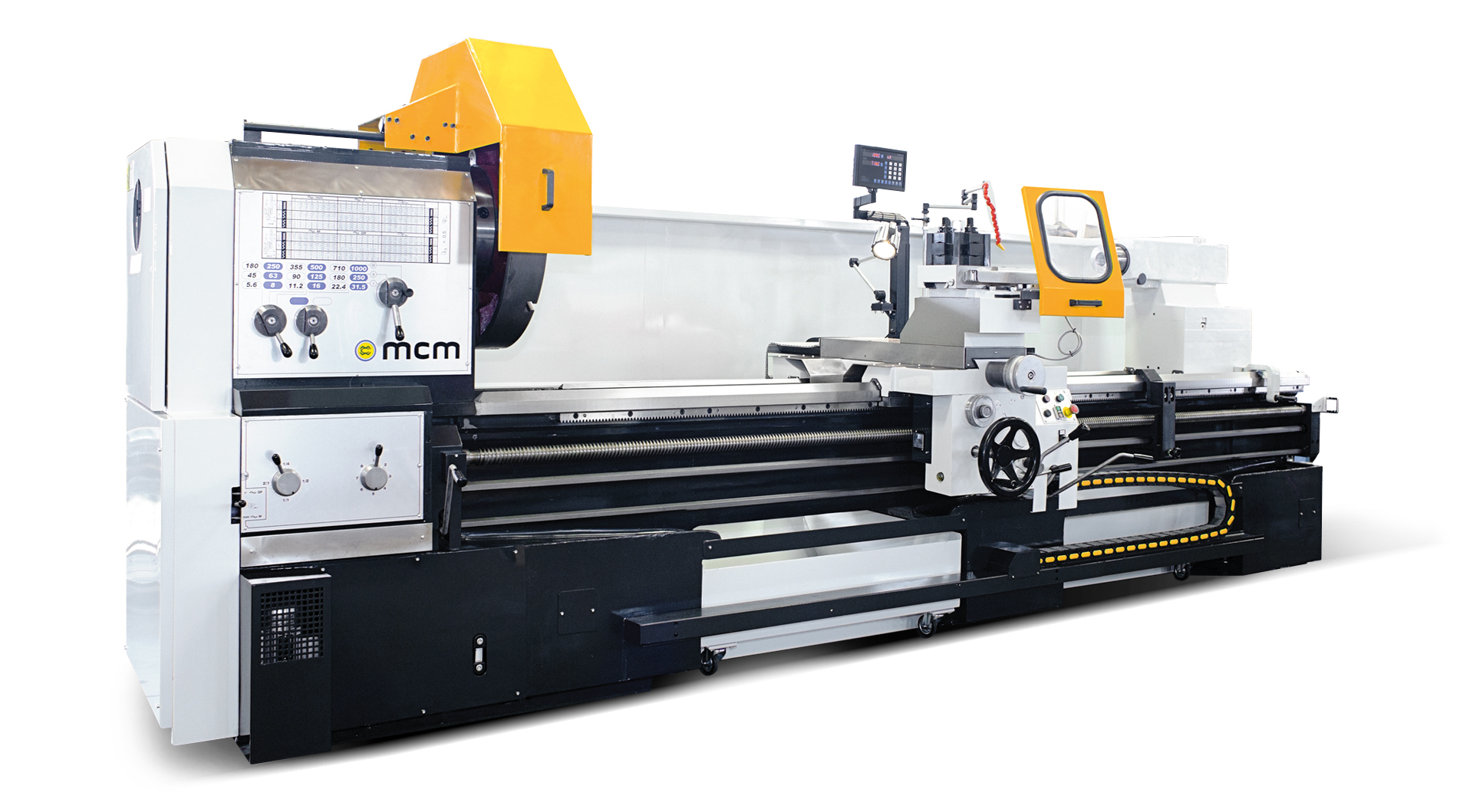

Conventional Lathe TC HEAVY BIG BORE
Request information
Technical Specifications380430500625
Height of centresmm380430500625
Swing over bedmm76086010001250
Swing over cross slidemm500600690920
Swing in gapmm900100012001450
Distance between centersmm1500 - 2000 - 3000 - 4000 - 5000 - 6000
Bed widthmm560700
Spindle boremm132155
Spindle nose-Camlock 11"ASA 15"
Number of spindle speedsN.1724
Spindle speed rangerpm8:10005:1000
Main motor power (S1 - 100%)Kw1522(30)
Range of longitudinal feedsmm/rev(150) 0.039 - 18(160) 0,032 - 38,9
Range of transversal feedsmm/rev(150) 0.02 - 9(160) 0,016 - 19,45
Range of threads Metricmm(76) 0.5 - 180(80) 0,5 - 480
Range of threads Whitworthtr/1"(76) 60 - 1/6(80) 60 - 1/16
Range of threads Modulemm(76) 0.125 - 45(80) 0,125 - 120
Range of threads Diametral PitchDP(76) 240 - 2/3(80) 240 - 1/4
Cross slide travelmm400430520650
Top slide travelmm150250
Tailstock quill diametermm105125
Tailstock quill travelmm220250
Tailstock quill taperMorse66
Weigth380430500625
TC HEAVY BIG BORE x 1500Kg5000520075008000
TC HEAVY BIG BORE x 2000Kg54005600------
TC HEAVY BIG BORE x 3000Kg6200640090009500
TC HEAVY BIG BORE x 4000Kg700072001000010500
TC HEAVY BIG BORE x 5000Kg780080001100011500
TC HEAVY BIG BORE x 6000Kg860088001200012500
