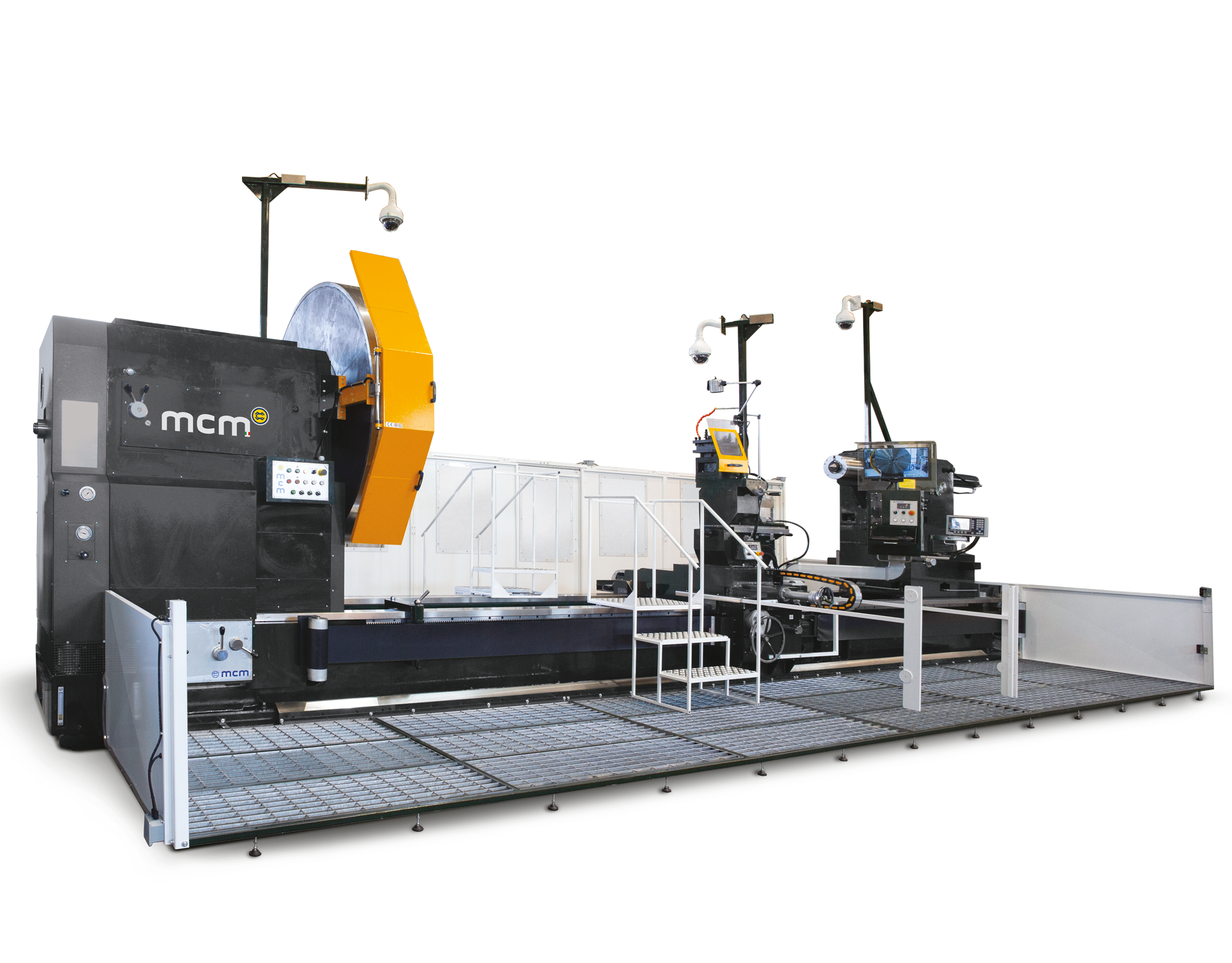

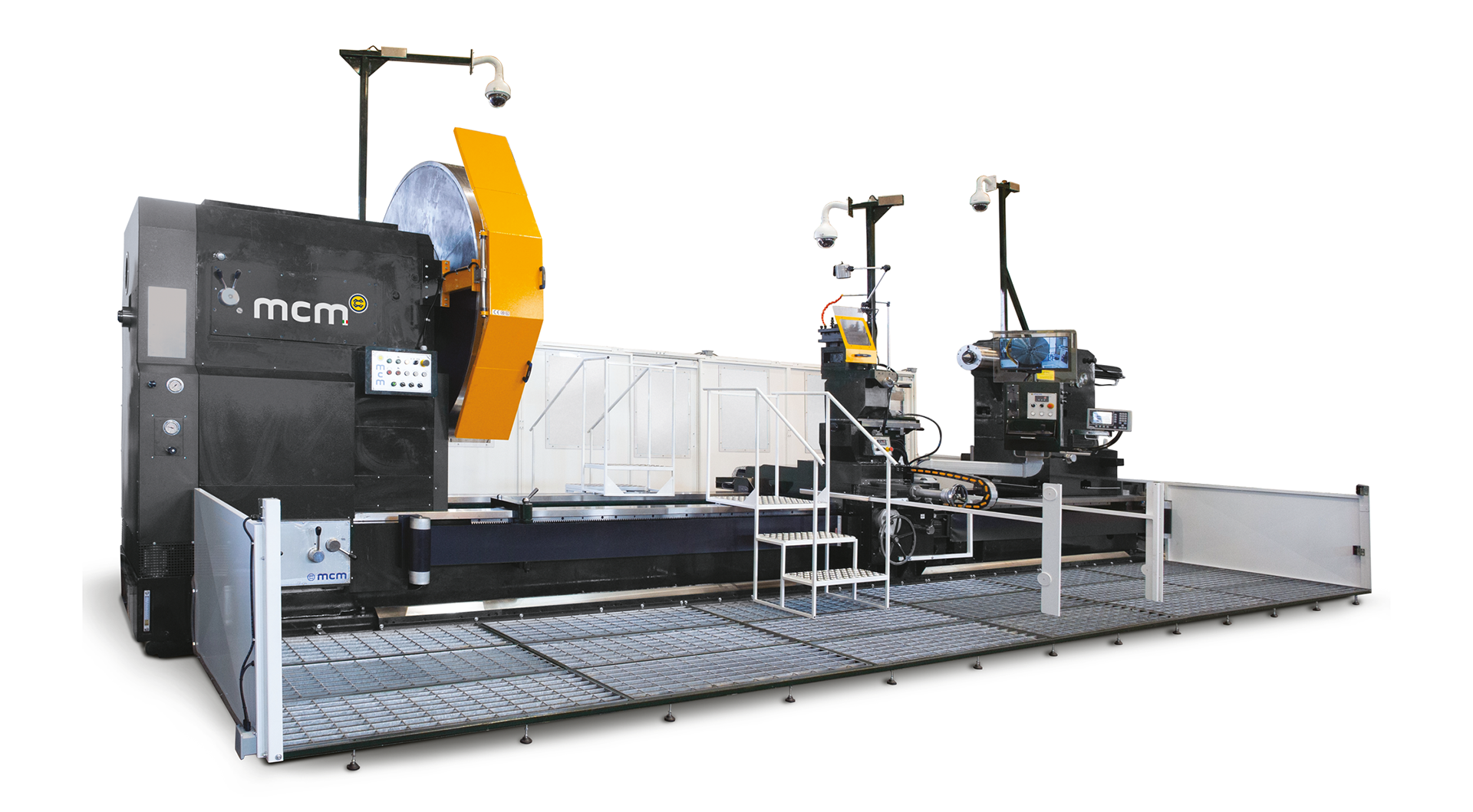

Conventional Lathe TC MEGALOS
TC MEGALOS is the top model in the range and is designed to handle machining operations on non standard components, characterized by high masses, large diameters, or very long lengths. The machine uses a high-rigidity base and a reinforced structure, elements that maintain feed regularity and geometric precision even under particularly demanding load conditions.
The 1100 mm wide bed ensures ample support for the workpiece and promotes stable carriage feed over very long strokes. This fluidity of movement allows for machining control that, in terms of continuity and precision, is close to the solutions typical of CNC lathes dedicated to large diameters.
With a turning length of up to 16 meters, a machinable diameter of 2400 mm, and a load capacity of up to 25,000 kg, TC MEGALOS is suitable for machining rollers, shafts, cylinders, and large industrial components, ensuring consistent and reliable performance even in the most demanding cycles.
- Monolithic structure
- Infinitively variable spindle speed (Inverter)
| Technical Specifications | 800 | 900 | 1000 | 1100 | 1200 | |
|---|---|---|---|---|---|---|
| HEIGHT OF CENTRES | mm | 800 | 900 | 1000 | 1100 | 1200 |
| SWING OVER BED | mm | 1600 | 1800 | 2000 | 2200 | 2400 |
| SWING OVER CROSS SLIDE | mm | 1200 | 1400 | 1600 | 1800 | 2000 |
| DISTANCE BETWEEN CENTRES | mm | 2000... 16000 | ||||
| WIDTH OF BED | mm | 1100 | ||||
| SPINDLE BORE | mm | 130 | ||||
| SPINDLE NOSE | ISO | A2 - 15 [Opt. A2 - 20] | ||||
| INFINITIVELY VARIABLE SPINDLE SPEEDS (Inverter) | rpm | N. 4 RANGES FROM 2,5 UP TO 250 RPM | ||||
| MAIN MOTOR POWER | Kw | 37 (Opt. 45 - 55 - 75) | ||||
| CROSS SLIDE TRAVEL (X-axis) | mm | 800 | 900 | 1000 | 1100 | 1200 |
| TOP SLIDE TRAVEL | mm | 200/400 | ||||
| TAILSTOCK QUILL DIAMETER | mm | 240 | ||||
| TAILSTOCK QUILL STROKE | mm | 300 | ||||
| MAXIMUM WEIGHT OF WORKPIECE BETWEEN CENTERS | Kg | 15000 (Opt. 20000 - 25000) | ||||
| Weight | 800 | 900 | 1000 | 1100 | 1200 | |
|---|---|---|---|---|---|---|
| WEIGHT OF THE LATHE OF 3000 mm (D.B.C.) | Kg | 20000 | 22000 | 24000 | 26000 | 28000 |
| EACH ADDITIONAL METER | Kg | +2500 |
Standard equipment

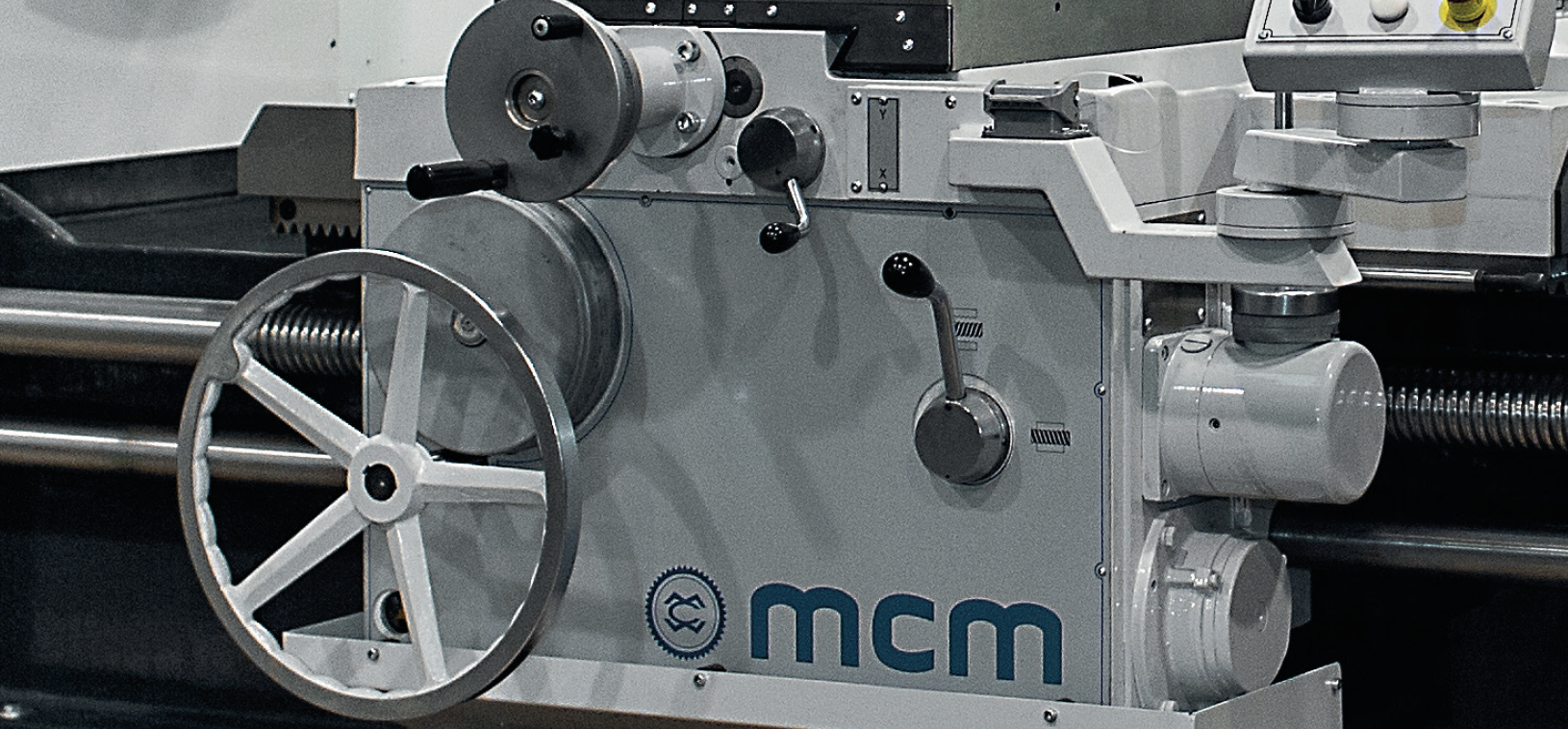

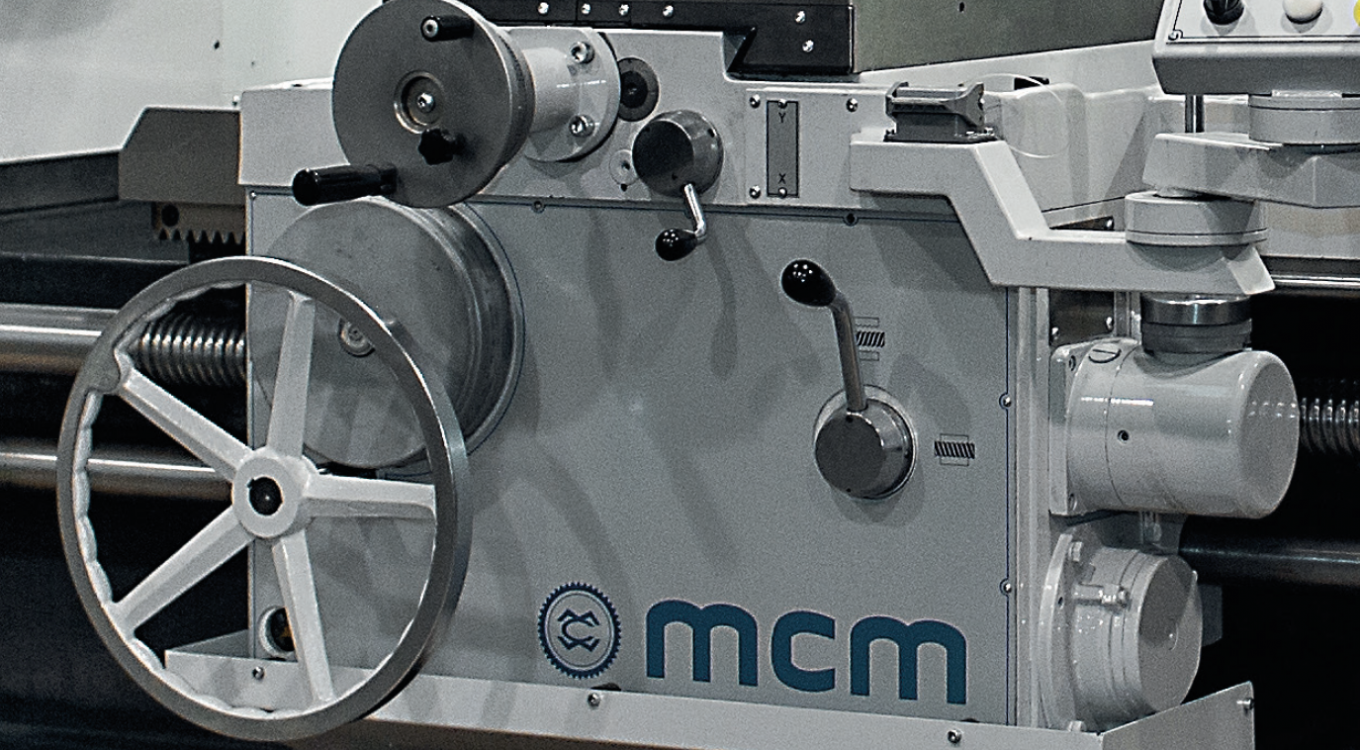

- Bed – Legs – Headstock – Tailstock – Carriages made of cast iron
- Bed guideways are induction hardened and ground
- Headstock with induction hardened and ground gears; spindle is assembled on high accuracy bearings
- Carriages are sliding on antifriction material
- Electric plant with low voltage control panel; it is placed in a suitable airtight cabinet. Make of components is Siemens and/or Schneider
- Spindle reduction sleeve
- 2 Dead centres
- Safety protections according to EC standards: Safety chuck guard with microswitch interlocked – Turret safety guard – Rear protection along full length of the machine – Protection of leadscrew and feed bars – Emergency stop button – Rope safety switch along the entire lenght of the lathe
- Chip tank
- Cooling system with electro-pump
- Central lubrication of guideways with automatic pump
- Steady rest and follow rest
- Service tools and wrenches
- Manuals
- Machine built according EC standards
Optional equipment

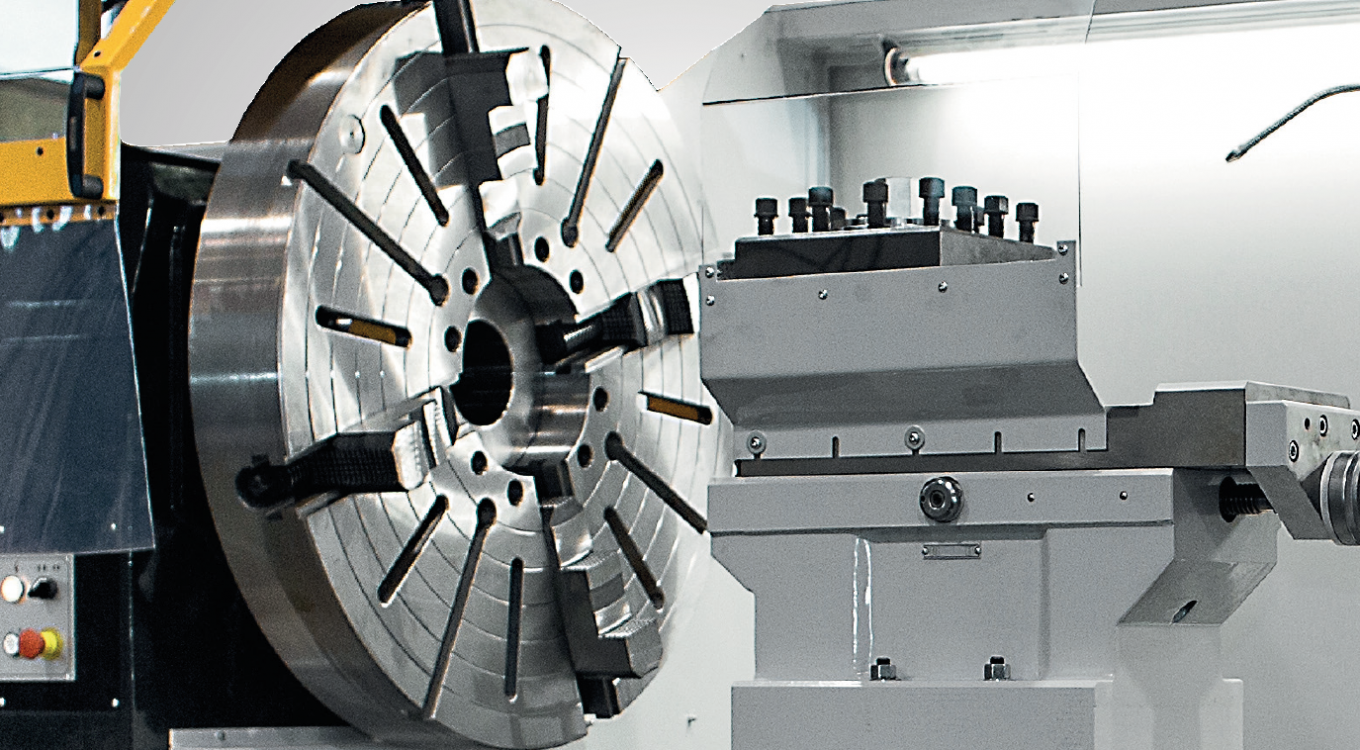

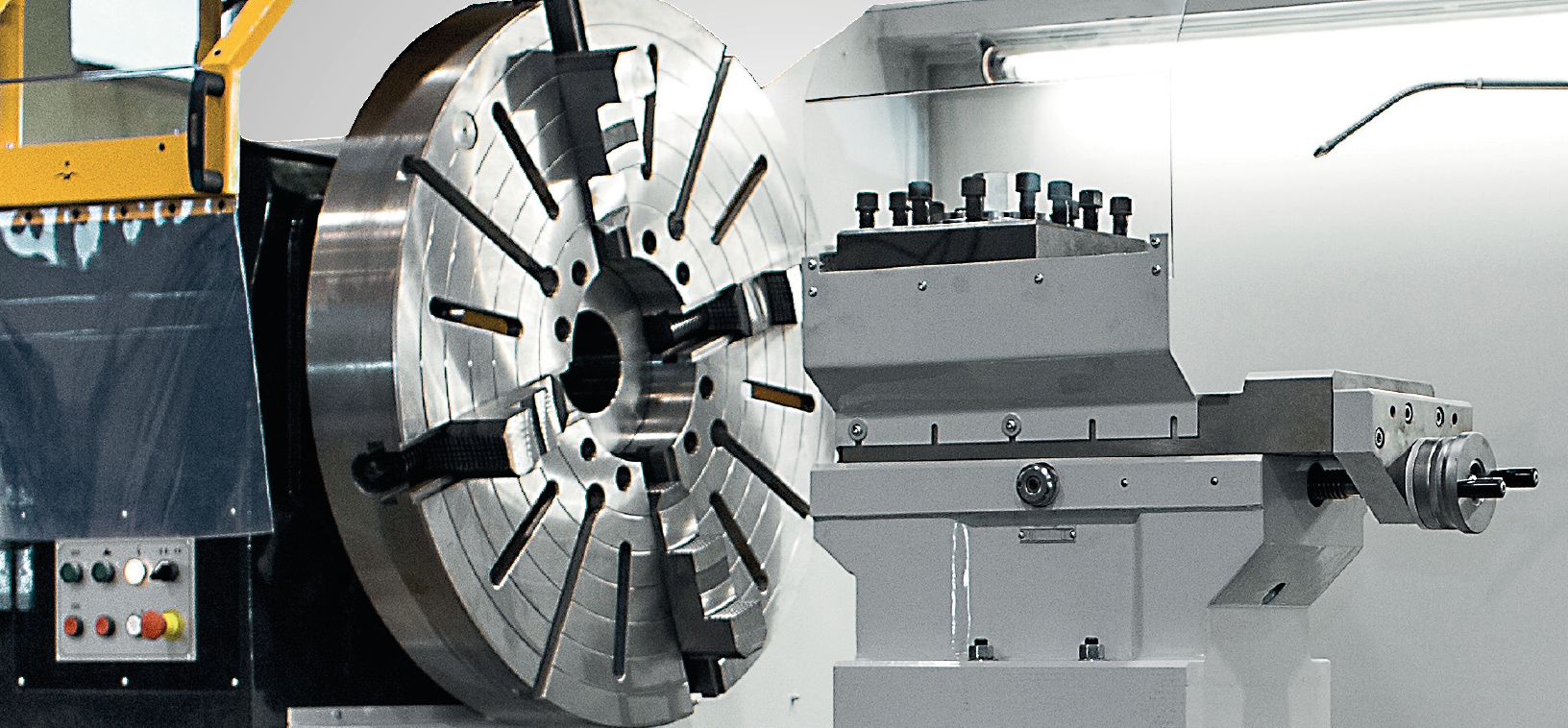

- Manual tool holder turret: Squared (4-way tool post) – Quick change turret – Indexing turret – Multifix turret
- 3 or 4 jaw self centering chuck
- 4-jaw independent chuck
- Live centre
- 2 or 3 axis digital readout
- Steady rest with larger Ø than standard one
- 6 position longitudinal stop
- Thread chasing dial
- Work area lighting
- Cutting Surface Speed
- Taper turning attachment
- Grinding equipment
- Levelling and anchoring pads
